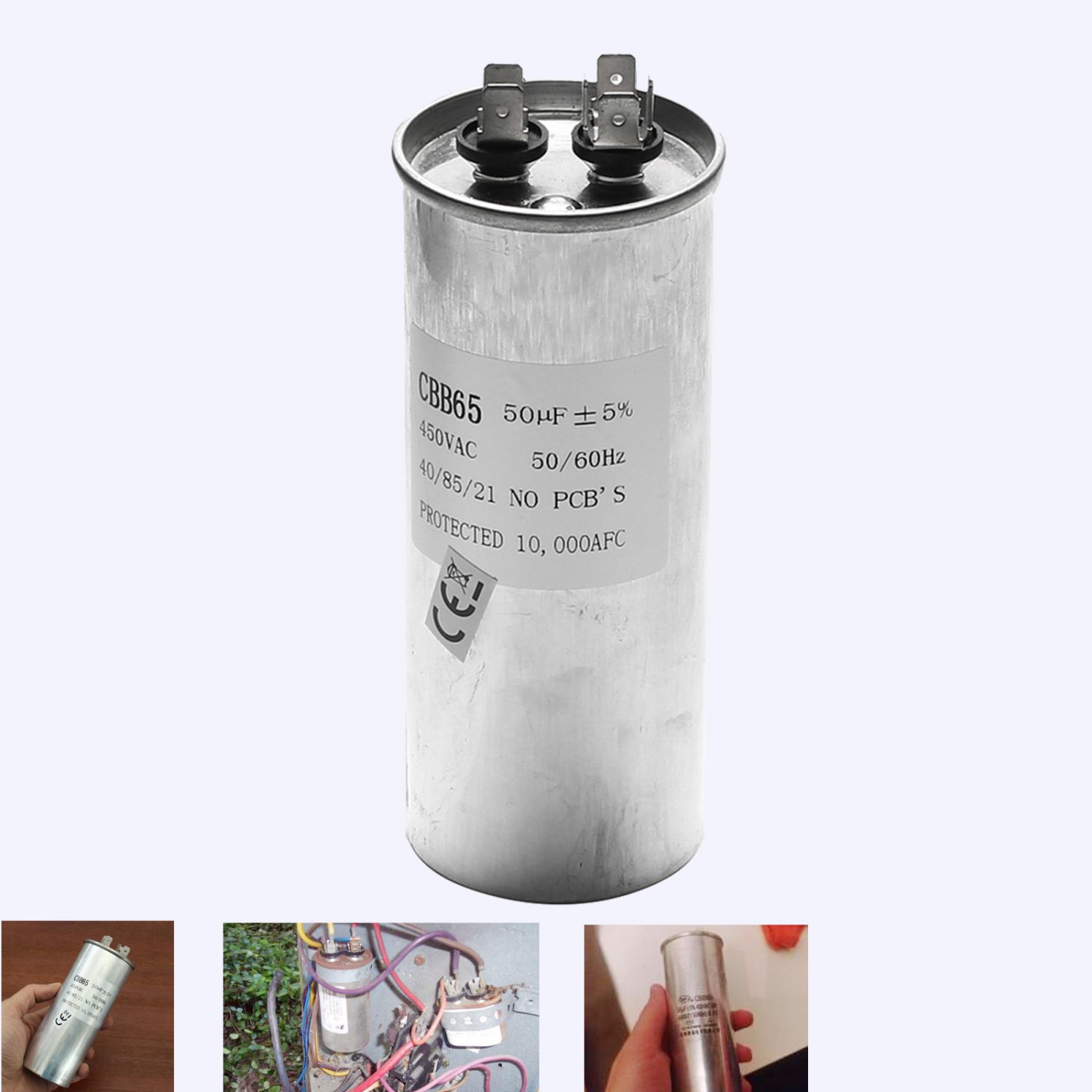

CBB65 450VAC 50uF Motor Capacitor Air Conditioner Compressor Start Capacitor Hown - store

Applied to the better working of sing-phase motor in 50Hz/60Hz frequency AC power system.
Suit to Commercial Refrigerators, Air conditioners, Water Pumps and other electric motors appliactions.

Specification:
Product Name: Motor Run Capacitor
Color: Silver Tone
Dielectric Material: Metallized Polypropylene Film
Ambient temperature: -25? to + 70?
Capacitance range: 50uF +/- 5%
Rated voltage: 450V AC 50/60HZ
Capacity: precision: J:±5% K:±10%
Insulation resistance: T-T?3000MÙUf(20?,100VDC)
Tg loss tangent value: tgä?0.002(100HZ,20?)
Withstand voltage: 2.0Un 3S

Dimensions: (Diameter x Height)
Type: 50uF - 4.9 x 12.5cm

Applications:
Air conditioning
Refrigerator
Washing machine
Electric fan
Oven

Features:
The edge of the capacitor thickening of the metal zinc aluminum film as electrodes and media.
The film was taken up in an aluminum casing after being wound up by a winding machine.
And then in the shell into high purity castor oil to keep the vacuum state, and can make the product high temperature.


Package Included:
1pc x CBB65 450VAC 50uf Motor Capacitor Air Conditioner Compressor Start Capacitor
